TPN – The latest phase in the FuseBox range
The popularity of the FuseBox circuit protection range among UK and Northern Ireland electrical contractors is still growing at pace – owing to our robust quality design and ease of installation.

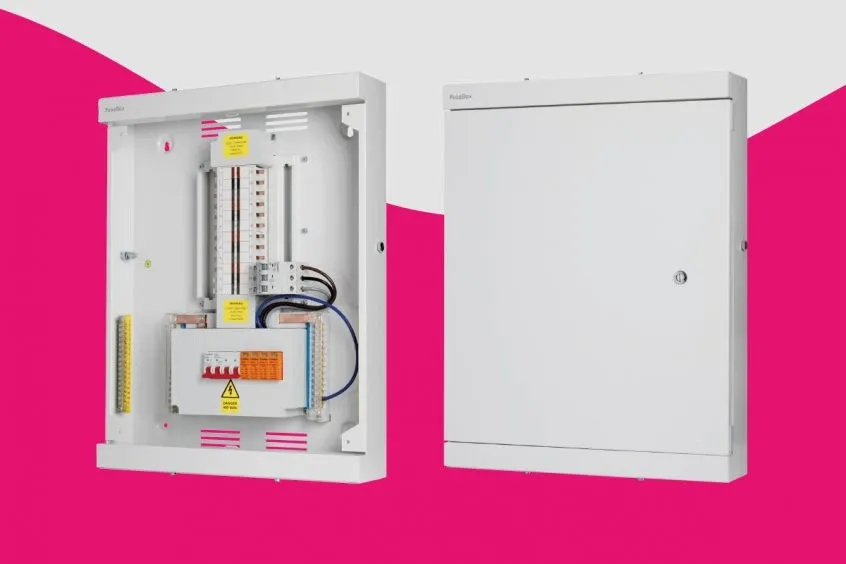

The introduction of our NEW TPN Distribution Boards with 3, 7, 11 and 15 usable ways, complete with 10kA devices together with factory fitted 125A 4Pole main switch and T2 Surge Protection Device, is the latest reason we continue to make electricians smile.
A practical solution
Continuing our focus on quality and practicality, the new FuseBox TPN distribution boards offer the ideal solution for commercial, industrial, and where required, domestic settings.
Design features include:
- 125A 4 pole main switch and T2 SPD factory fitted as standard
- 10kA Devices: MCBs, RCBOs, RCDs
- Robust pan assembly with device end stops
- Unique hinged front cover assembly
- Large, easy to terminate earth and neutral terminal bars
- Shrouded neutral terminal bars
- Removable gland plates top and bottom with smooth edge cable entry
- Compatible with FuseBox 6kA devices without any modification
- Extension box option
- Coin slot door lock
- Manufactured in accordance with BS EN61439-3
Built for life
The robust 1.2mm zinc galvanised steel enclosure, finished in RAL 9001 epoxy powder coating ensures long life in harsh environments.
Click here to download the New TPN Range Brochure.
The complete range of TPN Distribution Boards and 10kA devices is now available at all FuseBox stockists. Click here to find your local stockist>>>
